High Pressure Water blaster Machine 500bar 60L/min – Concrete Surface Treatment & Industrial Cleaning
Product Introduction

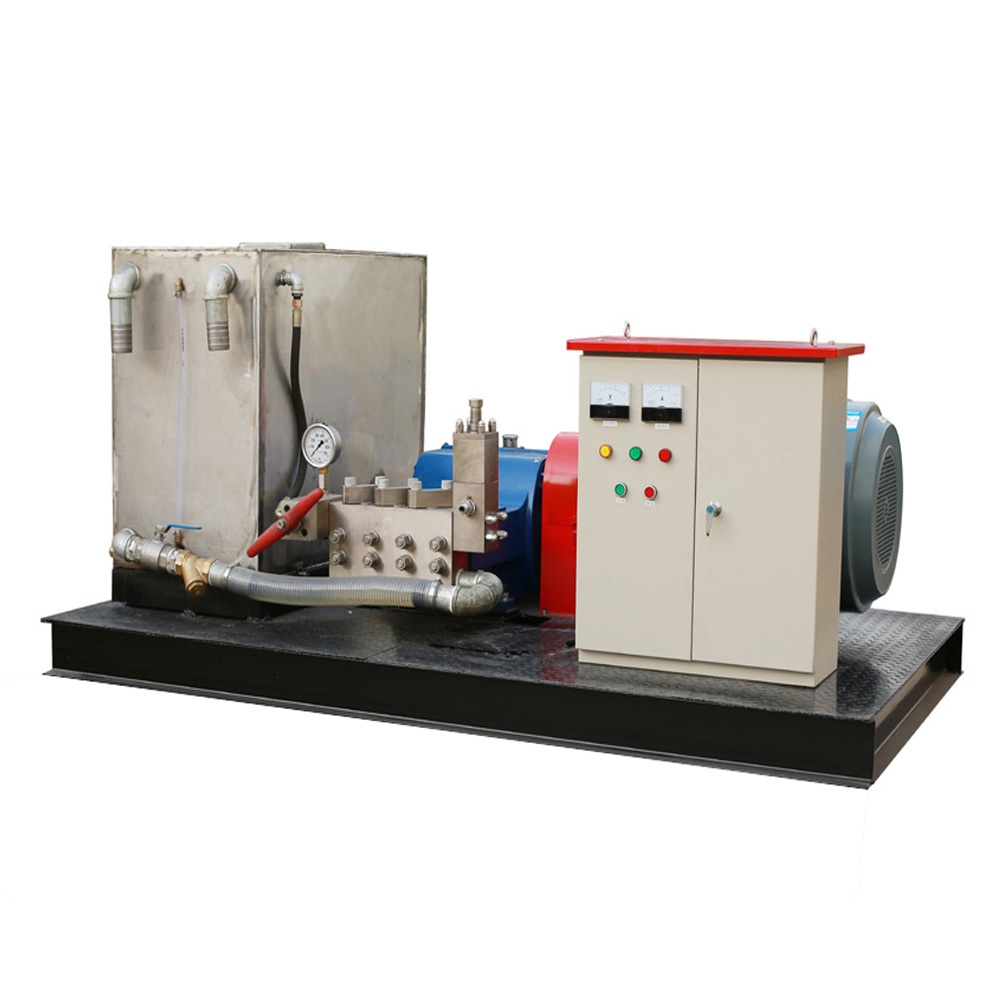

This high pressure water jetting machine is specifically engineered for demanding surface preparation and industrial cleaning tasks. Powered by a 55kW electric motor, it delivers a powerful 500 bar working pressure and 60L/min flow rate, making it ideal for secondary reinforcement in concrete structures, including dams, bridges, and tunnels.
It efficiently handles surface roughening (scabbling) and laitance removal on concrete grades such as C25, C30, C40, C50, and C60, creating the ideal bonding surface for overlays or new concrete layers. In addition to civil construction, it is also widely used in industrial settings for pipeline cleaning, dirt and scale removal, and heavy-duty surface maintenance.
Product Advantages
✔ Efficient Surface Preparation: Effectively removes laitance and weak surface layers from high-strength concrete (C25–C60), improving bond strength for overlays.
✔ Versatile Applications: Suitable for concrete scabbling, hydro-demolition, and industrial cleaning tasks in one machine.
✔ Stable & Energy-Saving Drive: 55kW electric motor offers continuous and quiet operation with minimal maintenance.
✔ Durable & High-Quality Components: Equipped with high-pressure pump, safety valve, pressure gauge, and industrial-grade hoses.
✔ Customizable Configuration: Can be skid-mounted or trailer-mounted; supports manual or remote control.
Technical Specifications
| Parameter | Value |
| Model | XZY500-60E |
| Working Pressure | 500 bar (7,250 psi) |
| Flow Rate | 60 L/min |
| Drive Type | Electric Motor |
| Motor Power | 55 kW |
| Voltage/Frequency | 380V / 50Hz (customizable) |
| Cooling System | Water-cooled / Air-cooled |
| Pump Type | Plunger Pump |
| Control Mode | Manual / Remote optional |
| Mounting | Skid or Trailer mounted |
| Optional Accessories | Foot Valve, Scabbler Lance, Hoses |
Application Areas
-
Concrete surface roughening and scabbling (C25–C60)
-
Surface preparation for bridge and dam reinforcement
-
Laitance removal and hydro-demolition
-
Cement and concrete residue removal
-
Industrial pipeline cleaning
-
Surface dirt, sludge, and scale removal
